MCH4009-TL-H

In Stock: 10,017

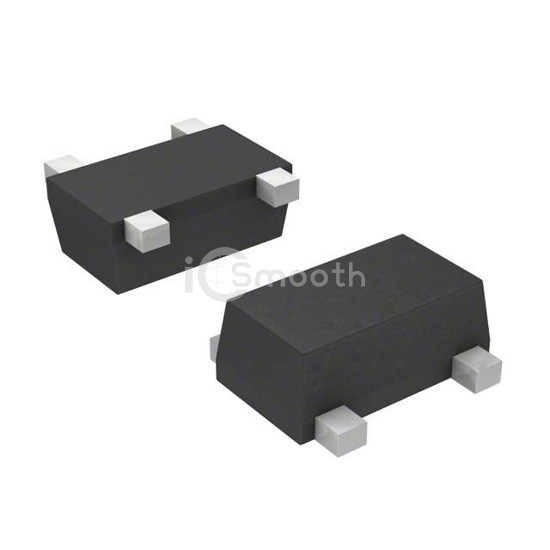

MCH4009-TL-H - onsemi - Transistors - Bipolar (BJT) - RF
REF: MCH4009-TL-H onsemi
MCH4009-TL-H

onsemi

RF TRANS NPN 3.5V 25GHZ 4MCPH

MCH4009-TL-H is a Transistors - Bipolar (BJT) - RF manufactured by onsemi. RF TRANS NPN 3.5V 25GHZ 4MCPH. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SOT-343F, current - collector (ic) (max) 40mA.

Datasheet Request a Quote

In Stock: 10,017

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)3.5V
Frequency - Transition25GHz
Noise Figure (dB Typ @ f)1.1dB @ 2GHz
Gain13.5dB
Power - Max120mW
DC Current Gain (hFE) (Min) @ Ic, Vce50 @ 5mA, 1V
Current - Collector (Ic) (Max)40mA
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-343F
Supplier Device Package4-MCPH
