Name: MC78M12CDTX
Brand: onsemi
SKU: MC78M12CDTX
Price: 0.22 USD
Availability: InStock

REF: MC78M12CDTX onsemi

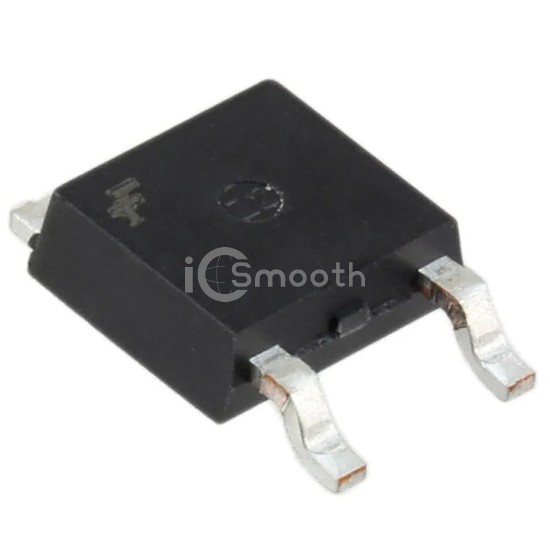

MC78M12CDTX

IC REG LINEAR 12V 500MA DPAK

MC78M12CDTX is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 12V 500MA DPAK. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C, package / case TO-252-3, DPak (2 Leads + Tab), SC-63, current - output 500mA.

Datasheet Request a Quote

In Stock: 5,660

Tiered Pricing USD

2,000+ $0.2189 —

4,000+ $0.1994 -9%

6,000+ $0.1894 -13%

10,000+ $0.1783 -19%

14,000+ $0.1718 -22%

20,000+ $0.1654 -24%

50,000+ $0.1625 -26% BEST

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	35V
Voltage - Output (Min/Fixed)	12V
Voltage - Output (Max)	-
Voltage Dropout (Max)	2V @ 500mA (Typ)
Current - Output	500mA

Current - Quiescent (Iq)	6 mA
Current - Supply (Max)	-
PSRR	80dB (120Hz)
Control Features	-
Protection Features	Over Temperature, Short Circuit
Operating Temperature	0°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	D-Pak
