MC7809ECDTX

In Stock: 7,636

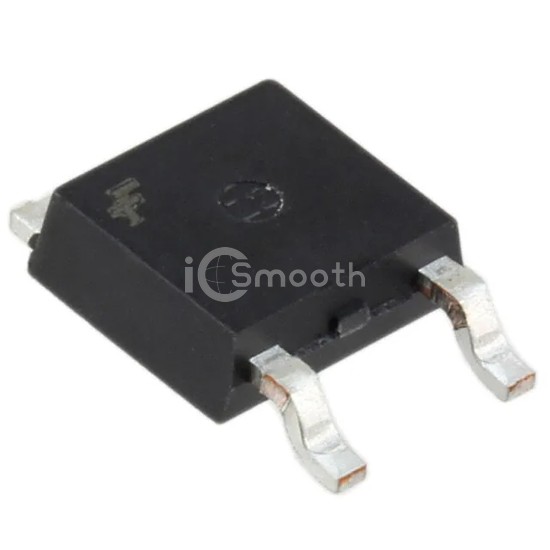

MC7809ECDTX - onsemi - PMIC - Voltage Regulators - Linear
REF: MC7809ECDTX onsemi
MC7809ECDTX

onsemi

IC REG LINEAR 9V 1A TO252

MC7809ECDTX is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 9V 1A TO252. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C, package / case TO-252-3, DPak (2 Leads + Tab), SC-63, current - output 1A.

Datasheet Request a Quote

In Stock: 7,636

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)35V
Voltage - Output (Min/Fixed)9V
Voltage - Output (Max)-
Voltage Dropout (Max)2V @ 1A (Typ)
Current - Output1A
Current - Quiescent (Iq)8 mA
Current - Supply (Max)-
PSRR71dB (120Hz)
Control Features-
Protection FeaturesOver Temperature, Short Circuit
Operating Temperature0°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device PackageD-Pak
