Name: MC7805ACTG
Brand: onsemi
SKU: MC7805ACTG
Price: 0.61 USD
Availability: InStock

REF: MC7805ACTG onsemi

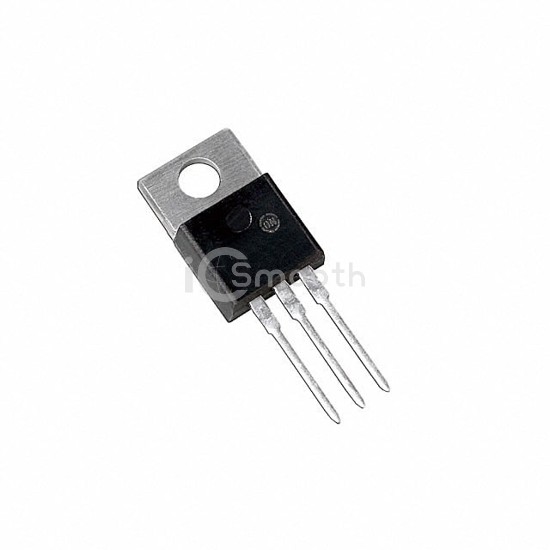

MC7805ACTG

IC REG LINEAR 5V 1A TO220AB

MC7805ACTG is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 5V 1A TO220AB. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 125°C, package / case TO-220-3, current - output 1A.

Datasheet Request a Quote

In Stock: 3,776

Tiered Pricing USD

1+ $0.6100 —

10+ $0.4320 -29%

50+ $0.3604 -41%

100+ $0.3381 -45%

250+ $0.3145 -48%

500+ $0.3003 -51%

1,000+ $0.2886 -53%

2,500+ $0.2763 -55%

5,000+ $0.2688 -56% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	35V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	2V @ 1A (Typ)
Current - Output	1A

Current - Quiescent (Iq)	6 mA
Current - Supply (Max)	-
PSRR	83dB (120Hz)
Control Features	-
Protection Features	Over Temperature, Short Circuit
Operating Temperature	0°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220
