MC74VHC1GT14MU2TCG

In Stock: 3,667

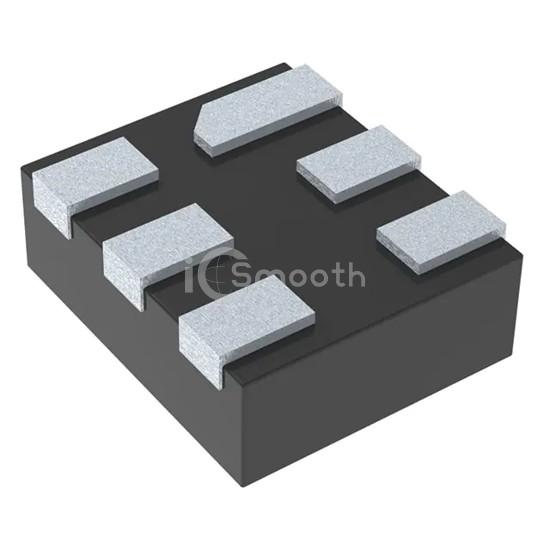

MC74VHC1GT14MU2TCG - onsemi - Logic - Gates and Inverters
REF: MC74VHC1GT14MU2TCG onsemi
MC74VHC1GT14MU2TCG

onsemi

IC INVERT SCHMITT 1CH 1-IN 6UDFN

MC74VHC1GT14MU2TCG is a Logic - Gates and Inverters manufactured by onsemi. IC INVERT SCHMITT 1CH 1-IN 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 2V ~ 5.5V, package / case 6-UFDFN.

Datasheet Request a Quote

In Stock: 3,667

Tiered Pricing USD
3,000+ $0.0803 —
6,000+ $0.0777 -3%
9,000+ $0.0764 -5%
15,000+ $0.0750 -7%
21,000+ $0.0741 -8%
30,000+ $0.0733 -9%
75,000+ $0.0716 -11% BEST

Specifications

15 parameters
Product StatusObsolete
Logic TypeInverter
Number of Circuits1
Number of Inputs1
FeaturesSchmitt Trigger
Voltage - Supply2V ~ 5.5V
Current - Quiescent (Max)1 µA
Current - Output High, Low8mA, 8mA
Logic Level - Low0.76V ~ 1.13V
Logic Level - High1.6V ~ 2.1V
Max Propagation Delay @ V, Max CL10.6ns @ 5V, 50pF
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package6-UDFN (1.2x1)
Package / Case6-UFDFN
