MC74VHC1G14MU2TCG

In Stock: 5,649

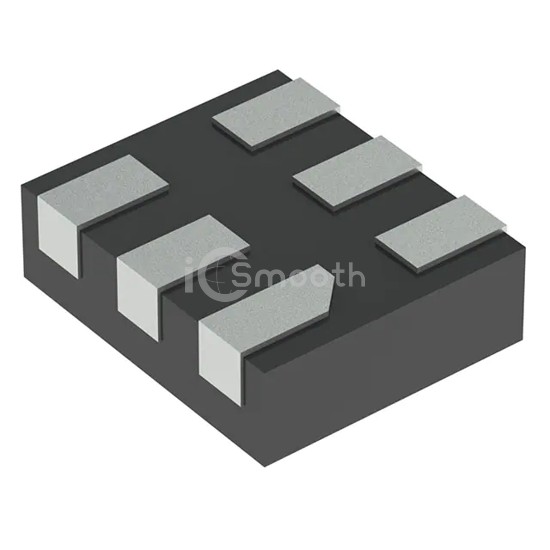

MC74VHC1G14MU2TCG - onsemi - Logic - Gates and Inverters
REF: MC74VHC1G14MU2TCG onsemi
MC74VHC1G14MU2TCG

onsemi

IC INVERT SCHMITT

MC74VHC1G14MU2TCG is a Logic - Gates and Inverters manufactured by onsemi. IC INVERT SCHMITT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 2V ~ 5.5V, package / case 6-UFDFN.

Datasheet Request a Quote

In Stock: 5,649

Specifications

15 parameters
Product StatusActive
Logic TypeInverter
Number of Circuits1
Number of Inputs1
FeaturesSchmitt Trigger
Voltage - Supply2V ~ 5.5V
Current - Quiescent (Max)1 µA
Current - Output High, Low8mA, 8mA
Logic Level - Low1.5V ~ 2.9V
Logic Level - High2.2V ~ 3.85V
Max Propagation Delay @ V, Max CL10.6ns @ 5V, 50pF
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package6-UDFN (1.2x1)
Package / Case6-UFDFN
