MC74VHC1G04MU1TCG

In Stock: 4,295

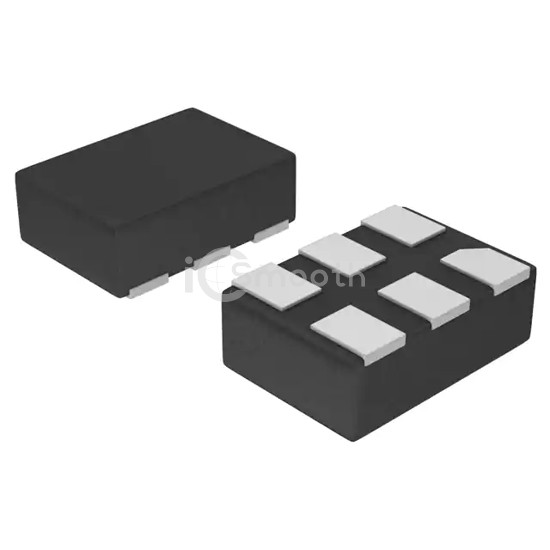

MC74VHC1G04MU1TCG - onsemi - Logic - Gates and Inverters
REF: MC74VHC1G04MU1TCG onsemi
MC74VHC1G04MU1TCG

onsemi

LOGIC GATE

MC74VHC1G04MU1TCG is a Logic - Gates and Inverters manufactured by onsemi. LOGIC GATE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 2V ~ 5.5V, package / case 6-UFDFN.

Datasheet Request a Quote

In Stock: 4,295

Tiered Pricing USD
1+ $0.2700 —
10+ $0.1870 -31%
25+ $0.1660 -39%
100+ $0.1423 -47%
250+ $0.1310 -51%
500+ $0.1243 -54%
1,000+ $0.1187 -56% BEST

Specifications

15 parameters
Product StatusObsolete
Logic TypeInverter
Number of Circuits1
Number of Inputs1
Features-
Voltage - Supply2V ~ 5.5V
Current - Quiescent (Max)1 µA
Current - Output High, Low8mA, 8mA
Logic Level - Low0.5V ~ 1.65V
Logic Level - High1.5V ~ 3.85V
Max Propagation Delay @ V, Max CL7.5ns @ 5V, 50pF
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package6-UDFN (1.45x1)
Package / Case6-UFDFN
