MC74HC377ADTG

In Stock: 4,171

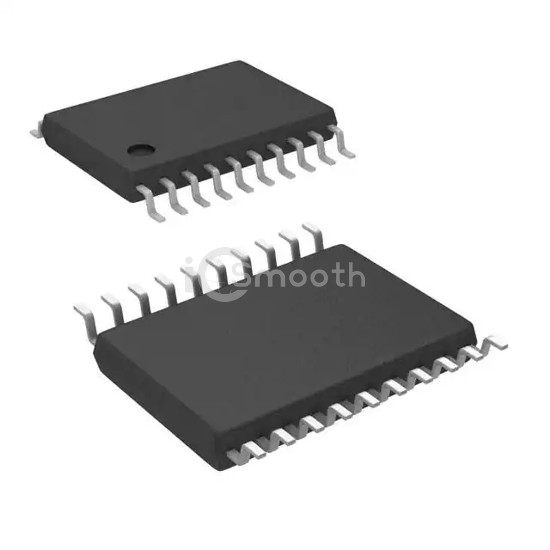

MC74HC377ADTG - onsemi - Logic - Flip Flops
REF: MC74HC377ADTG onsemi
MC74HC377ADTG

onsemi

IC FF D-TYPE SNGL 8BIT 20TSSOP

MC74HC377ADTG is a Logic - Flip Flops manufactured by onsemi. IC FF D-TYPE SNGL 8BIT 20TSSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), voltage - supply 2V ~ 6V, package / case 20-TSSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 4,171

Specifications

17 parameters
Product StatusObsolete
FunctionStandard
TypeD-Type
Output TypeNon-Inverted
Number of Elements1
Number of Bits per Element8
Clock Frequency35 MHz
Max Propagation Delay @ V, Max CL27ns @ 6V, 50pF
Trigger TypePositive Edge
Current - Output High, Low5.2mA, 5.2mA
Voltage - Supply2V ~ 6V
Current - Quiescent (Iq)4 µA
Input Capacitance10 pF
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device Package20-TSSOP
Package / Case20-TSSOP (0.173", 4.40mm Width)
