MC74AC00NG

In Stock: 8,255

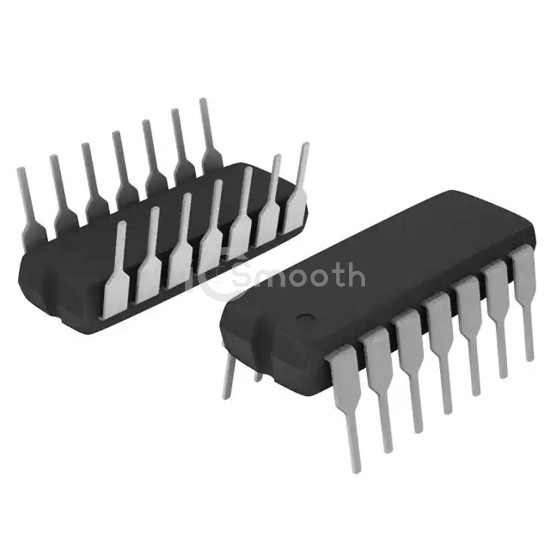

MC74AC00NG - onsemi - Logic - Gates and Inverters
REF: MC74AC00NG onsemi
MC74AC00NG

onsemi

IC GATE NAND 4CH 2-INP 14DIP

MC74AC00NG is a Logic - Gates and Inverters manufactured by onsemi. IC GATE NAND 4CH 2-INP 14DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply 2V ~ 6V, package / case 14-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 8,255

Specifications

15 parameters
Product StatusObsolete
Logic TypeNAND Gate
Number of Circuits4
Number of Inputs2
Features-
Voltage - Supply2V ~ 6V
Current - Quiescent (Max)4 µA
Current - Output High, Low24mA, 24mA
Logic Level - Low0.9V ~ 1.65V
Logic Level - High2.1V ~ 3.85V
Max Propagation Delay @ V, Max CL8ns @ 5V, 50pF
Operating Temperature-55°C ~ 125°C
Mounting TypeThrough Hole
Supplier Device Package14-PDIP
Package / Case14-DIP (0.300", 7.62mm)
