MC34152PG

In Stock: 7,015

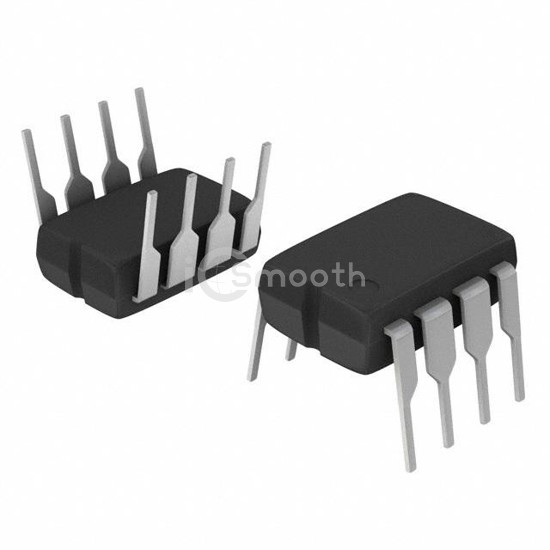

MC34152PG - onsemi - PMIC - Gate Drivers
REF: MC34152PG onsemi
MC34152PG

onsemi

IC GATE DRVR LOW-SIDE 8DIP

MC34152PG is a PMIC - Gate Drivers manufactured by onsemi. IC GATE DRVR LOW-SIDE 8DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 150°C (TJ), voltage - supply 6.1V ~ 18V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 7,015

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationLow-Side
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply6.1V ~ 18V
Logic Voltage - VIL, VIH0.8V, 2.6V
Current - Peak Output (Source, Sink)1.5A, 1.5A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)36ns, 32ns
Operating Temperature0°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case8-DIP (0.300", 7.62mm)
Supplier Device Package8-PDIP
