MC34060APG

In Stock: 1,105

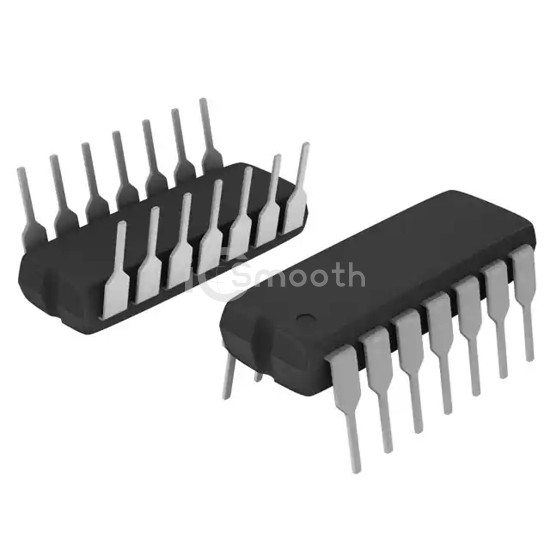

MC34060APG - onsemi - PMIC - Voltage Regulators - DC DC Switching Controllers
REF: MC34060APG onsemi
MC34060APG

onsemi

IC REG CTRLR FLYBACK 14DIP

MC34060APG is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by onsemi. IC REG CTRLR FLYBACK 14DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 7V ~ 40V, package / case 14-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 1,105

Specifications

18 parameters
Product StatusObsolete
Output TypeTransistor Driver
FunctionStep-Up/Step-Down
Output ConfigurationPositive or Negative, Isolation Capable
TopologyFlyback
Number of Outputs1
Output Phases1
Voltage - Supply (Vcc/Vdd)7V ~ 40V
Frequency - Switching25kHz
Duty Cycle (Max)96%
Synchronous RectifierNo
Clock SyncNo
Serial Interfaces-
Control FeaturesDead Time Control
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeThrough Hole
Package / Case14-DIP (0.300", 7.62mm)
Supplier Device Package14-PDIP
