Name: MC33152PG
Brand: onsemi
SKU: MC33152PG
Price: 1.51 USD
Availability: InStock

REF: MC33152PG onsemi

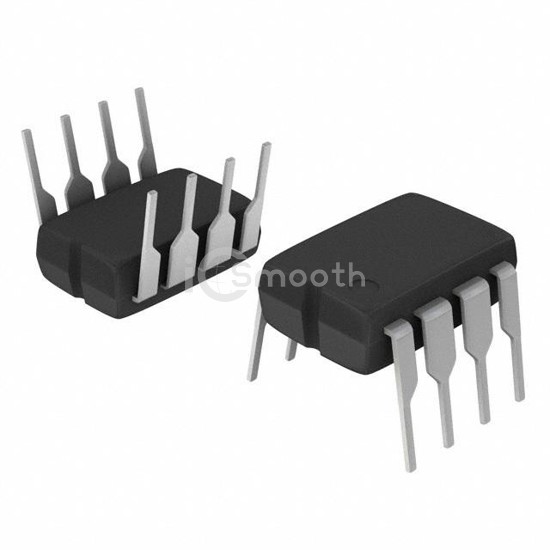

MC33152PG

IC GATE DRVR LOW-SIDE 8DIP

MC33152PG is a PMIC - Gate Drivers manufactured by onsemi. IC GATE DRVR LOW-SIDE 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 6.1V ~ 18V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 871

Tiered Pricing USD

1+ $1.5100 —

10+ $1.1040 -27%

50+ $0.9404 -38%

100+ $0.8896 -41%

250+ $0.8361 -45%

500+ $0.8039 -47%

1,000+ $0.7773 -49%

2,500+ $0.7493 -50%

5,000+ $0.7324 -51% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	Low-Side
Channel Type	Independent
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	6.1V ~ 18V
Logic Voltage - VIL, VIH	0.8V, 2.6V
Current - Peak Output (Source, Sink)	1.5A, 1.5A

Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	-
Rise / Fall Time (Typ)	36ns, 32ns
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-PDIP
