MC14503BFELG

In Stock: 5,961

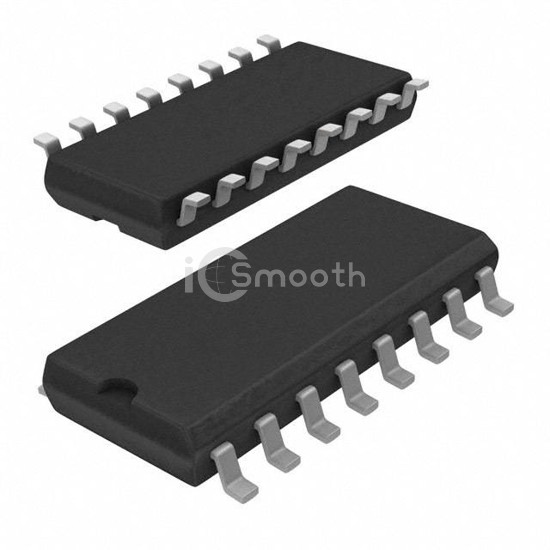

MC14503BFELG - onsemi - Logic - Buffers, Drivers, Receivers, Transceivers
REF: MC14503BFELG onsemi
MC14503BFELG

onsemi

IC BUF NON-INVERT 18V 16SOEIAJ

MC14503BFELG is a Logic - Buffers, Drivers, Receivers, Transceivers manufactured by onsemi. IC BUF NON-INVERT 18V 16SOEIAJ. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), voltage - supply 3V ~ 18V, package / case 16-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 5,961

Specifications

12 parameters
Product StatusObsolete
Logic TypeBuffer, Non-Inverting
Number of Elements2
Number of Bits per Element2, 4 (Hex)
Input Type-
Output Type3-State
Current - Output High, Low14.1mA, 25mA
Voltage - Supply3V ~ 18V
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-SOIC (0.209", 5.30mm Width)
Supplier Device Package16-SOEIAJ
