MC14001BCPG

In Stock: 3,781

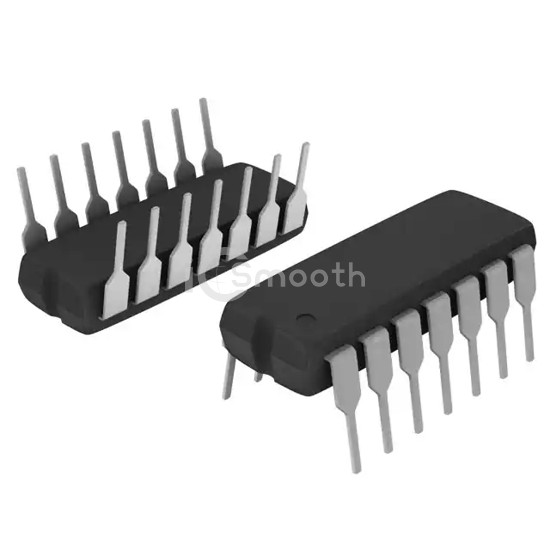

MC14001BCPG - onsemi - Logic - Gates and Inverters
REF: MC14001BCPG onsemi
MC14001BCPG

onsemi

IC GATE NOR 4CH 2-INP 14DIP

MC14001BCPG is a Logic - Gates and Inverters manufactured by onsemi. IC GATE NOR 4CH 2-INP 14DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply 3V ~ 18V, package / case 14-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 3,781

Specifications

15 parameters
Product StatusObsolete
Logic TypeNOR Gate
Number of Circuits4
Number of Inputs2
Features-
Voltage - Supply3V ~ 18V
Current - Quiescent (Max)1 µA
Current - Output High, Low8.8mA, 8.8mA
Logic Level - Low1.5V ~ 4V
Logic Level - High3.5V ~ 11V
Max Propagation Delay @ V, Max CL80ns @ 15V, 50pF
Operating Temperature-55°C ~ 125°C
Mounting TypeThrough Hole
Supplier Device Package14-PDIP
Package / Case14-DIP (0.300", 7.62mm)
