MC10H109MG

In Stock: 7,050

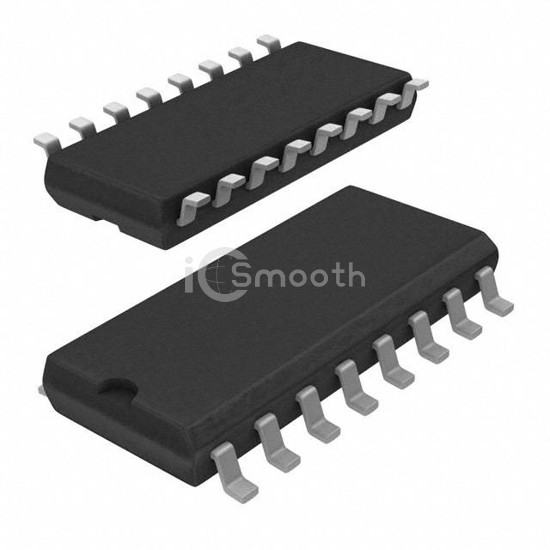

MC10H109MG - onsemi - Logic - Gates and Inverters - Multi-Function, Configurable
REF: MC10H109MG onsemi
MC10H109MG

onsemi

IC GATE OR/NOR DUAL 4-5 16SOEIAJ

MC10H109MG is a Logic - Gates and Inverters - Multi-Function, Configurable manufactured by onsemi. IC GATE OR/NOR DUAL 4-5 16SOEIAJ. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 75°C, package / case 16-SOIC (0.209", 5.30mm Width), output type Differential.

Datasheet Request a Quote

In Stock: 7,050

Specifications

12 parameters
Product StatusObsolete
Logic TypeNOR/OR Gate
Number of Circuits2
Number of Inputs9 Input (4, 5)
Schmitt Trigger InputNo
Output TypeDifferential
Current - Output High, Low-
Voltage - Supply-
Operating Temperature0°C ~ 75°C
Mounting TypeSurface Mount
Package / Case16-SOIC (0.209", 5.30mm Width)
Supplier Device Package16-SOEIAJ
