MC10H104FN

In Stock: 3,466

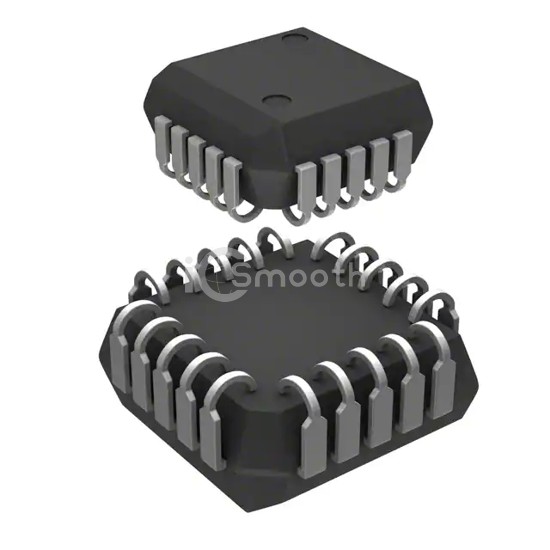

MC10H104FN - onsemi - Logic - Gates and Inverters
REF: MC10H104FN onsemi
MC10H104FN

onsemi

IC GATE AND 4CH 2-INP 20PLCC

MC10H104FN is a Logic - Gates and Inverters manufactured by onsemi. IC GATE AND 4CH 2-INP 20PLCC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 75°C, voltage - supply -4.94V ~ -5.46V, package / case 20-LCC (J-Lead).

Datasheet Request a Quote

In Stock: 3,466

Specifications

15 parameters
Product StatusObsolete
Logic TypeAND Gate
Number of Circuits4
Number of Inputs2
Features1 of 4 AND/NAND Output
Voltage - Supply-4.94V ~ -5.46V
Current - Quiescent (Max)-
Current - Output High, Low50mA, 50mA
Logic Level - Low-1.48V
Logic Level - High-1.13V
Max Propagation Delay @ V, Max CL1.75ns @ -5.2V, -
Operating Temperature0°C ~ 75°C
Mounting TypeSurface Mount
Supplier Device Package20-PLCC (9x9)
Package / Case20-LCC (J-Lead)
