MC10H103MELG

In Stock: 48,722

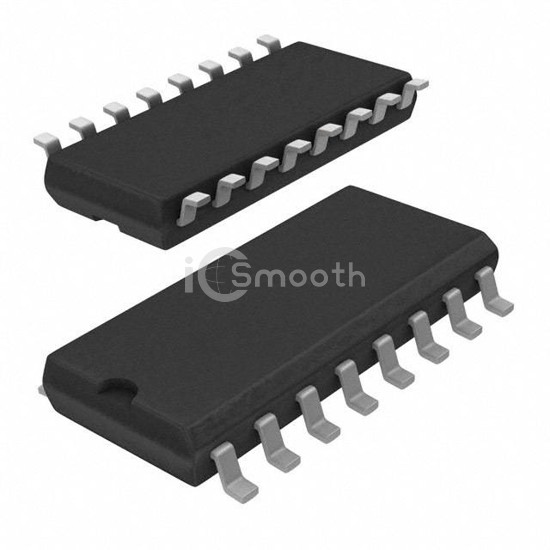

MC10H103MELG - onsemi - Logic - Gates and Inverters
REF: MC10H103MELG onsemi
MC10H103MELG

onsemi

IC GATE OR 4CH 2-INP 16SOEIAJ

MC10H103MELG is a Logic - Gates and Inverters manufactured by onsemi. IC GATE OR 4CH 2-INP 16SOEIAJ. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 75°C, voltage - supply -4.94V ~ -5.46V, package / case 16-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 48,722

Specifications

15 parameters
Product StatusObsolete
Logic TypeOR Gate
Number of Circuits4
Number of Inputs2
Features1 of 4 OR/NOR Output
Voltage - Supply-4.94V ~ -5.46V
Current - Quiescent (Max)-
Current - Output High, Low50mA, 50mA
Logic Level - Low-1.48V
Logic Level - High-1.13V
Max Propagation Delay @ V, Max CL1.3ns @ -5.2V, -
Operating Temperature0°C ~ 75°C
Mounting TypeSurface Mount
Supplier Device Package16-SOEIAJ
Package / Case16-SOIC (0.209", 5.30mm Width)
