MC10H103FNR2

In Stock: 9,118

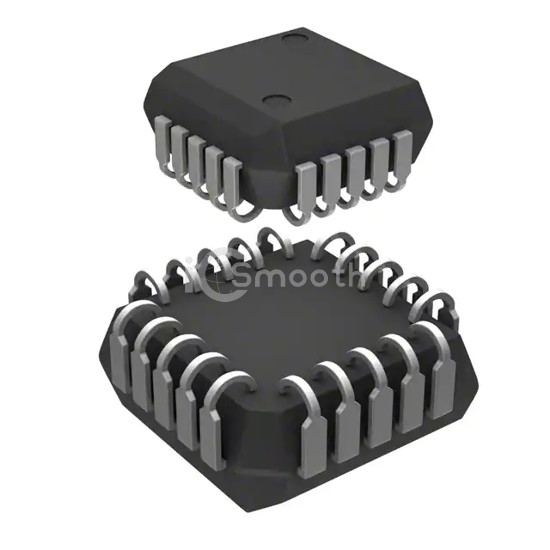

MC10H103FNR2 - onsemi - Logic - Gates and Inverters
REF: MC10H103FNR2 onsemi
MC10H103FNR2

onsemi

IC GATE OR 4CH 2-INP 20PLCC

MC10H103FNR2 is a Logic - Gates and Inverters manufactured by onsemi. IC GATE OR 4CH 2-INP 20PLCC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 75°C, voltage - supply -4.94V ~ -5.46V, package / case 20-LCC (J-Lead).

Datasheet Request a Quote

In Stock: 9,118

Specifications

15 parameters
Product StatusObsolete
Logic TypeOR Gate
Number of Circuits4
Number of Inputs2
Features1 of 4 OR/NOR Output
Voltage - Supply-4.94V ~ -5.46V
Current - Quiescent (Max)-
Current - Output High, Low50mA, 50mA
Logic Level - Low-1.48V
Logic Level - High-1.13V
Max Propagation Delay @ V, Max CL1.3ns @ -5.2V, -
Operating Temperature0°C ~ 75°C
Mounting TypeSurface Mount
Supplier Device Package20-PLCC (9x9)
Package / Case20-LCC (J-Lead)
