MC10EP105FAG

In Stock: 10,411

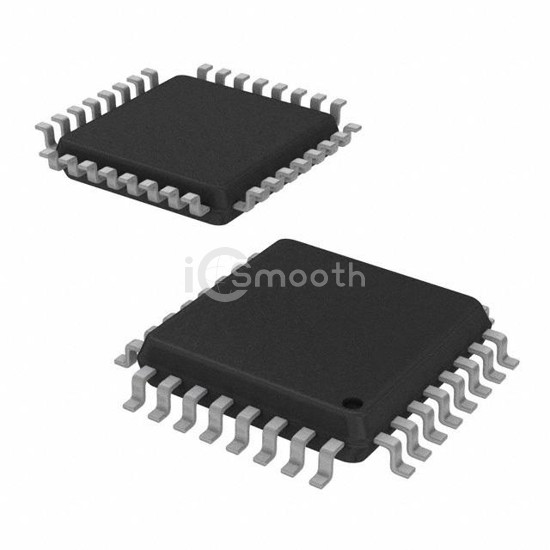

MC10EP105FAG - onsemi - Logic - Gates and Inverters - Multi-Function, Configurable
REF: MC10EP105FAG onsemi
MC10EP105FAG

onsemi

IC AND/NAND QUAD 2INP ECL 32LQFP

MC10EP105FAG is a Logic - Gates and Inverters - Multi-Function, Configurable manufactured by onsemi. IC AND/NAND QUAD 2INP ECL 32LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 3V ~ 5.5V, package / case 32-LQFP.

Datasheet Request a Quote

In Stock: 10,411

Tiered Pricing USD
1+ $24.1900 —
10+ $19.4240 -20%
25+ $18.2328 -25%
100+ $16.9237 -30%
250+ $16.2999 -33%
500+ $15.9239 -34% BEST

Specifications

12 parameters
Product StatusActive
Logic TypeAND/NAND Gate
Number of Circuits4
Number of Inputs8 Input (2, 2, 2, 2)
Schmitt Trigger InputNo
Output TypeDifferential
Current - Output High, Low-
Voltage - Supply3V ~ 5.5V
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case32-LQFP
Supplier Device Package32-LQFP (7x7)
