MC100EP105MNR4G

In Stock: 1,243
MC100EP105MNR4G - onsemi - Logic - Gates and Inverters - Multi-Function, Configurable
REF: MC100EP105MNR4G onsemi
MC100EP105MNR4G

onsemi

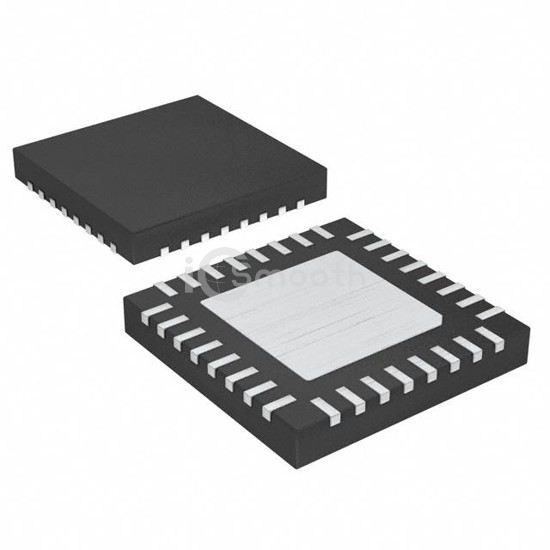

IC GATE AND/NAND QUAD 2INP 32QFN

MC100EP105MNR4G is a Logic - Gates and Inverters - Multi-Function, Configurable manufactured by onsemi. IC GATE AND/NAND QUAD 2INP 32QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 3V ~ 5.5V, package / case 32-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,243

Specifications

12 parameters
Product StatusObsolete
Logic TypeAND/NAND Gate
Number of Circuits4
Number of Inputs8 Input (2, 2, 2, 2)
Schmitt Trigger InputNo
Output TypeDifferential
Current - Output High, Low-
Voltage - Supply3V ~ 5.5V
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case32-VFQFN Exposed Pad
Supplier Device Package32-QFN (5x5)
