MC100EP05MNR4G

In Stock: 45,261
MC100EP05MNR4G - onsemi - Logic - Gates and Inverters - Multi-Function, Configurable
REF: MC100EP05MNR4G onsemi
MC100EP05MNR4G

onsemi

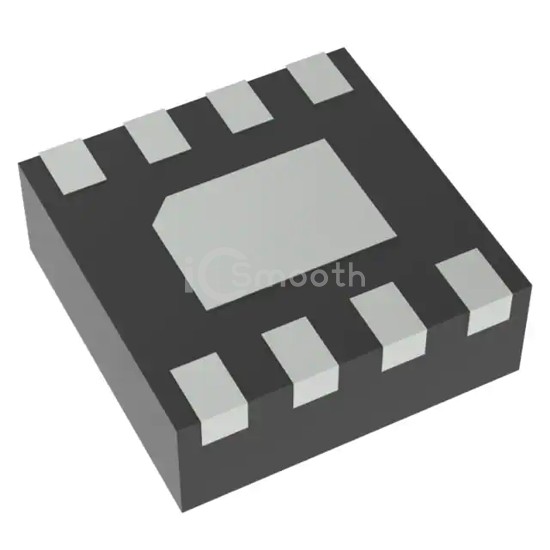

IC GATE AND/NAND 2INP DIFF 8-DFN

MC100EP05MNR4G is a Logic - Gates and Inverters - Multi-Function, Configurable manufactured by onsemi. IC GATE AND/NAND 2INP DIFF 8-DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 3V ~ 5.5V, package / case 8-VFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 45,261

Specifications

12 parameters
Product StatusObsolete
Logic TypeAND/NAND Gate
Number of Circuits1
Number of Inputs2 Input (1, 1)
Schmitt Trigger InputNo
Output TypeDifferential
Current - Output High, Low-
Voltage - Supply3V ~ 5.5V
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case8-VFDFN Exposed Pad
Supplier Device Package8-DFN (2x2)
