MC100E101FNR2G

In Stock: 1,044

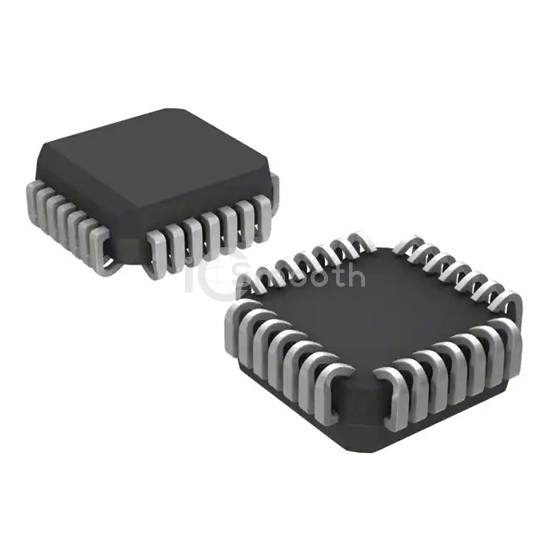

MC100E101FNR2G - onsemi - Logic - Gates and Inverters - Multi-Function, Configurable
REF: MC100E101FNR2G onsemi
MC100E101FNR2G

onsemi

IC GATE OR/NOR QUAD 4INP 28-PLCC

MC100E101FNR2G is a Logic - Gates and Inverters - Multi-Function, Configurable manufactured by onsemi. IC GATE OR/NOR QUAD 4INP 28-PLCC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 4.2V ~ 5.7V, package / case 28-LCC (J-Lead).

Datasheet Request a Quote

In Stock: 1,044

Specifications

12 parameters
Product StatusObsolete
Logic TypeNOR/OR Gate
Number of Circuits4
Number of Inputs16 Input (4, 4, 4, 4)
Schmitt Trigger InputNo
Output TypeDifferential
Current - Output High, Low-
Voltage - Supply4.2V ~ 5.7V
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case28-LCC (J-Lead)
Supplier Device Package28-PLCC (11.51x11.51)
