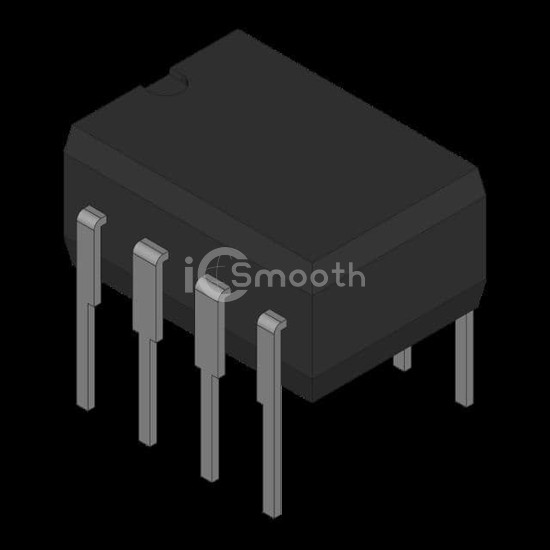

Name: LM393N-ON
Brand: onsemi
SKU: LM393N-ON
Availability: InStock

REF: LM393N-ON onsemi

LM393N-ON

COMPARATOR, 2 FUNC, 9000UV OFFSE

LM393N-ON is a Linear - Comparators manufactured by onsemi. COMPARATOR, 2 FUNC, 9000UV OFFSE. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, package / case 8-DIP (0.300", 7.62mm), output type Open-Collector, CMOS, DTL, ECL, MOS, TTL.

Datasheet Request a Quote

In Stock: 2,667

Specifications

16 parameters

Product Status	Active
Type	General Purpose
Number of Elements	2
Output Type	Open-Collector, CMOS, DTL, ECL, MOS, TTL
Voltage - Supply, Single/Dual (±)	2V ~ 36V, ±1V ~ 18V
Voltage - Input Offset (Max)	5mV @ 30V
Current - Input Bias (Max)	0.25µA @ 5V
Current - Output (Typ)	16mA @ 5V

Current - Quiescent (Max)	1mA
CMRR, PSRR (Typ)	-
Propagation Delay (Max)	-
Hysteresis	-
Operating Temperature	0°C ~ 70°C
Package / Case	8-DIP (0.300", 7.62mm)
Mounting Type	Through Hole
Supplier Device Package	8-PDIP
