Name: LM317MABTG
Brand: onsemi
SKU: LM317MABTG
Price: 0.66 USD
Availability: InStock

REF: LM317MABTG onsemi

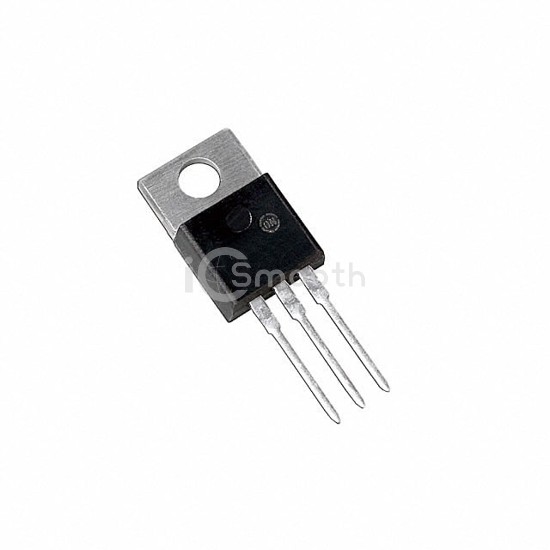

LM317MABTG

IC REG LIN POS ADJ 500MA TO220

LM317MABTG is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LIN POS ADJ 500MA TO220. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-220-3, current - output 500mA.

Datasheet Request a Quote

In Stock: 1,482

Tiered Pricing USD

1+ $0.6600 —

10+ $0.4670 -29%

50+ $0.3900 -41%

100+ $0.3661 -45%

250+ $0.3409 -48%

500+ $0.3257 -51%

1,000+ $0.3132 -53%

2,500+ $0.3000 -55%

5,000+ $0.2920 -56% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	1.2V
Voltage - Output (Max)	37V
Voltage Dropout (Max)	-
Current - Output	500mA

Current - Quiescent (Iq)	10 mA
Current - Supply (Max)	-
PSRR	80dB ~ 65dB (120Hz)
Control Features	-
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220
