Name: LB8503V-W-AH
Brand: onsemi
SKU: LB8503V-W-AH
Availability: InStock

REF: LB8503V-W-AH onsemi

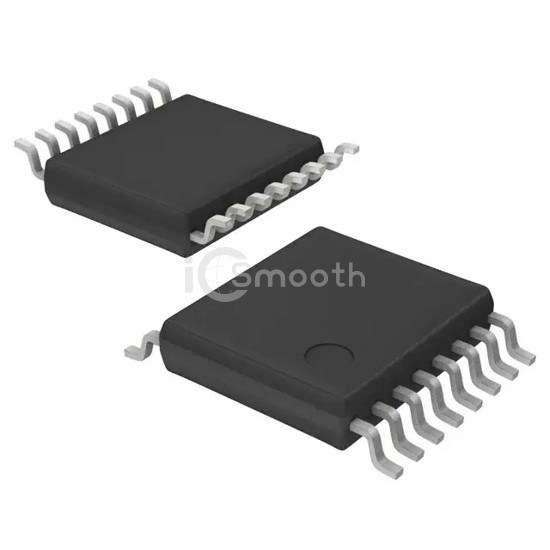

LB8503V-W-AH

IC MOTOR SPEED CTRL SA30

LB8503V-W-AH is a PMIC - Motor Drivers, Controllers manufactured by onsemi. IC MOTOR SPEED CTRL SA30. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 95°C (TA), voltage - supply 5.5V ~ 6.5V, 7.5V ~ 17V, package / case 16-LSSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 7,460

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	-
Motor Type - AC, DC	Brushless DC (BLDC), Brushed DC
Function	Controller - Speed
Output Configuration	Pre-Driver - Half Bridge (3)
Interface	Analog, PWM
Technology	-
Step Resolution	-

Applications	Fan Controller
Current - Output	3mA
Voltage - Supply	5.5V ~ 6.5V, 7.5V ~ 17V
Voltage - Load	-
Operating Temperature	-30°C ~ 95°C (TA)
Mounting Type	Surface Mount
Package / Case	16-LSSOP (0.173", 4.40mm Width)
Supplier Device Package	16-SSOP
