Name: LB1980H-TRM-E
Brand: onsemi
SKU: LB1980H-TRM-E
Availability: InStock

REF: LB1980H-TRM-E onsemi

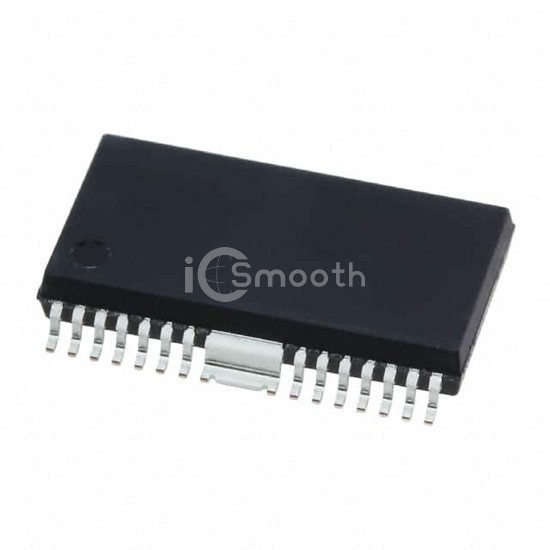

LB1980H-TRM-E

IC MOTOR DRIVER 4.5V-5.5V 28HSOP

LB1980H-TRM-E is a PMIC - Motor Drivers, Controllers manufactured by onsemi. IC MOTOR DRIVER 4.5V-5.5V 28HSOP. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 75°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 28-SOP (0.311", 7.90mm Width) Exposed Pad + 2 Heat Tabs.

Request a Quote

In Stock: 7,641

Specifications

16 parameters

Product Status	Obsolete
Motor Type - Stepper	-
Motor Type - AC, DC	Brushless DC (BLDC)
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (3)
Interface	Parallel
Technology	Bipolar
Step Resolution	-

Applications	Media Player
Current - Output	1.3A
Voltage - Supply	4.5V ~ 5.5V
Voltage - Load	5V ~ 22V
Operating Temperature	-20°C ~ 75°C (TA)
Mounting Type	Surface Mount
Package / Case	28-SOP (0.311", 7.90mm Width) Exposed Pad + 2 Heat Tabs
Supplier Device Package	28-HSOPH
