LA59700MX-TLM-E

In Stock: 2,265

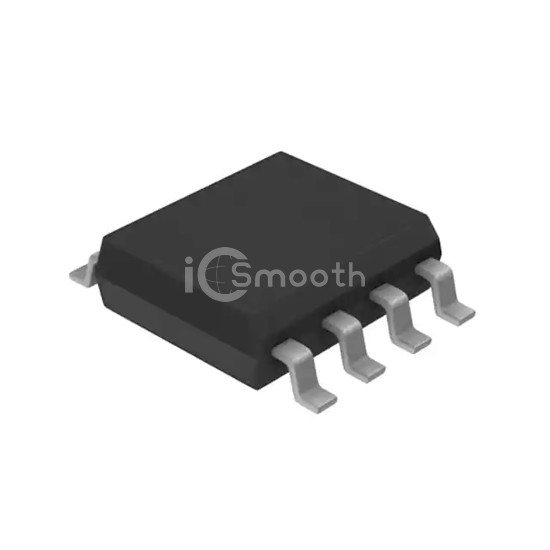

LA59700MX-TLM-E - onsemi - PMIC - Voltage Regulators - Linear
REF: LA59700MX-TLM-E onsemi
LA59700MX-TLM-E

onsemi

IC REG LINEAR POS ADJ 1A 8MFP

LA59700MX-TLM-E is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR POS ADJ 1A 8MFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-SOIC (0.173", 4.40mm Width) Exposed Pad, current - supply (max) 7 mA.

Datasheet Request a Quote

In Stock: 2,265

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)15V
Voltage - Output (Min/Fixed)1.5V
Voltage - Output (Max)13.5V
Voltage Dropout (Max)1.2V @ 1A
Current - Output1A
Current - Quiescent (Iq)3.5 mA
Current - Supply (Max)7 mA
PSRR65dB (120Hz)
Control FeaturesEnable
Protection FeaturesOver Current
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package8-MFP
