KSD1020GBU

In Stock: 9,952

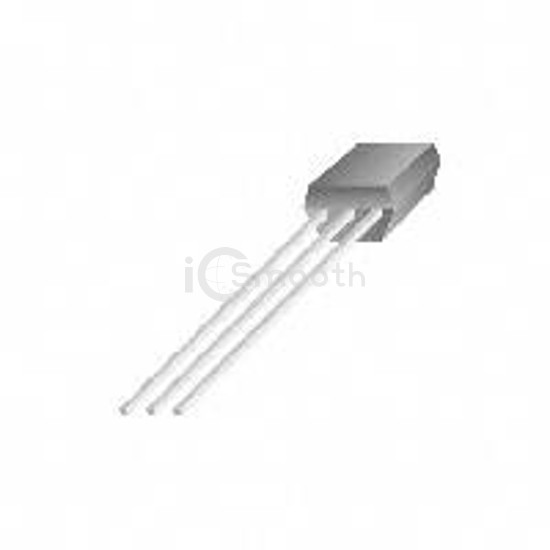

KSD1020GBU - onsemi - Transistors - Bipolar (BJT) - Single
REF: KSD1020GBU onsemi
KSD1020GBU

onsemi

TRANS NPN 25V 0.7A TO92S

KSD1020GBU is a Transistors - Bipolar (BJT) - Single manufactured by onsemi. TRANS NPN 25V 0.7A TO92S. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-226-3, TO-92-3 Short Body, current - collector (ic) (max) 700 mA.

Datasheet Request a Quote

In Stock: 9,952

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)700 mA
Voltage - Collector Emitter Breakdown (Max)25 V
Vce Saturation (Max) @ Ib, Ic400mV @ 70mA, 700mA
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce200 @ 100mA, 1V
Power - Max350 mW
Frequency - Transition170MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-226-3, TO-92-3 Short Body
Supplier Device PackageTO-92S
