Name: IRLW630ATM
Brand: onsemi
SKU: IRLW630ATM
Availability: InStock

REF: IRLW630ATM onsemi

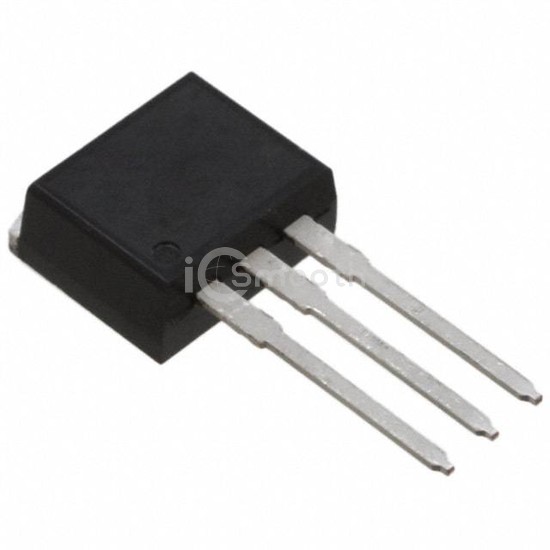

IRLW630ATM

MOSFET N-CH 200V 9A I2PAK

IRLW630ATM is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 200V 9A I2PAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-262-3 Long Leads, I²Pak, TO-262AA.

Datasheet Request a Quote

In Stock: 8,077

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	400mOhm @ 4.5A, 5V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	27 nC @ 5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	755 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	3.1W (Ta), 69W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I2PAK (TO-262)
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
