HUF75639P3-F102

In Stock: 1,631

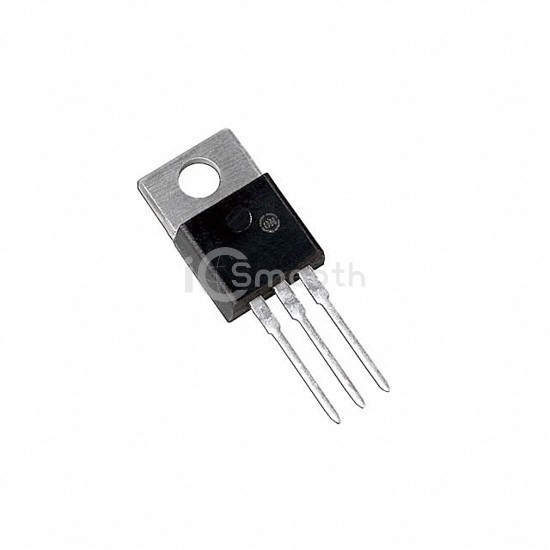

HUF75639P3-F102 - onsemi - Transistors - FETs, MOSFETs - Single
REF: HUF75639P3-F102 onsemi
HUF75639P3-F102

onsemi

MOSFET N-CH 100V 56A TO220-3

HUF75639P3-F102 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 100V 56A TO220-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 1,631

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C56A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs25mOhm @ 56A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs130 nC @ 20 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2000 pF @ 25 V
FET Feature-
Power Dissipation (Max)200W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220-3
Package / CaseTO-220-3
