Name: HMHA2801
Brand: onsemi
SKU: HMHA2801
Price: 0.61 USD
Availability: InStock

REF: HMHA2801 onsemi

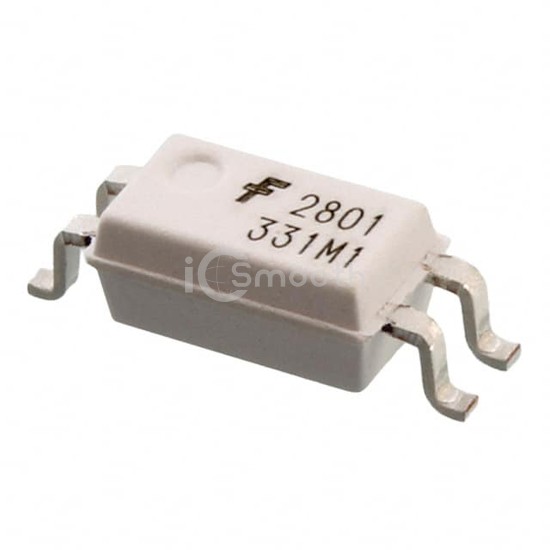

HMHA2801

OPTOISO 3.75KV TRANSISTOR 4SMD

HMHA2801 is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISO 3.75KV TRANSISTOR 4SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.3V (Max), package / case 4-SOIC (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 2,404

Tiered Pricing USD

1+ $0.6100 —

10+ $0.4230 -31%

150+ $0.2908 -52%

600+ $0.2486 -59%

1,050+ $0.2350 -61%

2,100+ $0.2205 -64%

5,100+ $0.2051 -66%

10,050+ $0.1954 -68%

25,050+ $0.1845 -70% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	80% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	3µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.3V (Max)
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SOIC (0.173", 4.40mm Width)
Supplier Device Package	4-Mini-Flat
