HGTP20N60A4

In Stock: 7,802

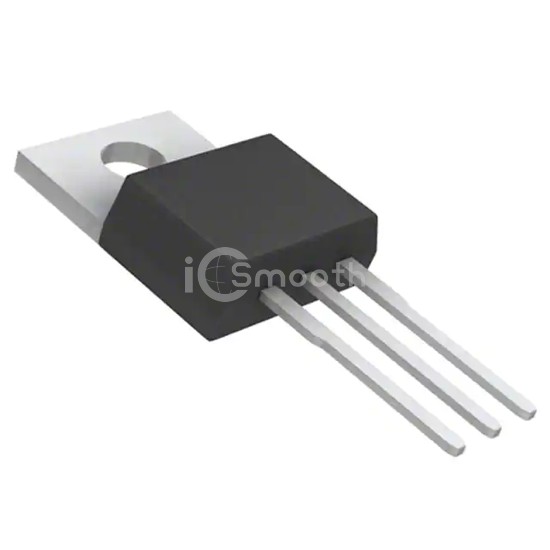

HGTP20N60A4 - onsemi - Transistors - IGBTs - Single
REF: HGTP20N60A4 onsemi
HGTP20N60A4

onsemi

IGBT 600V 70A TO220-3

HGTP20N60A4 is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 600V 70A TO220-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3, current - collector (ic) (max) 70 A.

Datasheet Request a Quote

In Stock: 7,802

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)70 A
Current - Collector Pulsed (Icm)280 A
Vce(on) (Max) @ Vge, Ic2.7V @ 15V, 20A
Power - Max290 W
Switching Energy105µJ (on), 150µJ (off)
Input TypeStandard
Gate Charge142 nC
Td (on/off) @ 25°C15ns/73ns
Test Condition390V, 20A, 3Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220-3
