Name: HCPL4503SDM
Brand: onsemi
SKU: HCPL4503SDM
Price: 2.30 USD
Availability: InStock

REF: HCPL4503SDM onsemi

HCPL4503SDM

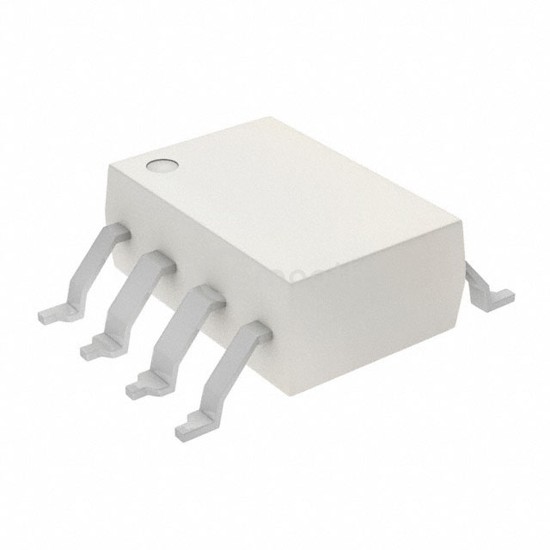

OPTOISO 5KV TRANS W/BASE 8SMD

HCPL4503SDM is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISO 5KV TRANS W/BASE 8SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.45V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 7,615

Tiered Pricing USD

1+ $2.3000 —

10+ $1.6550 -28%

100+ $1.2711 -45%

500+ $1.1019 -52% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	19% @ 16mA
Current Transfer Ratio (Max)	50% @ 16mA
Turn On / Turn Off Time (Typ)	250ns, 260ns
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	20V
Current - Output / Channel	8mA
Voltage - Forward (Vf) (Typ)	1.45V
Current - DC Forward (If) (Max)	25 mA
Vce Saturation (Max)	-
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	8-SMD, Gull Wing
Supplier Device Package	8-SMD
