Name: HCPL4503M
Brand: onsemi
SKU: HCPL4503M
Price: 2.30 USD
Availability: InStock

REF: HCPL4503M onsemi

HCPL4503M

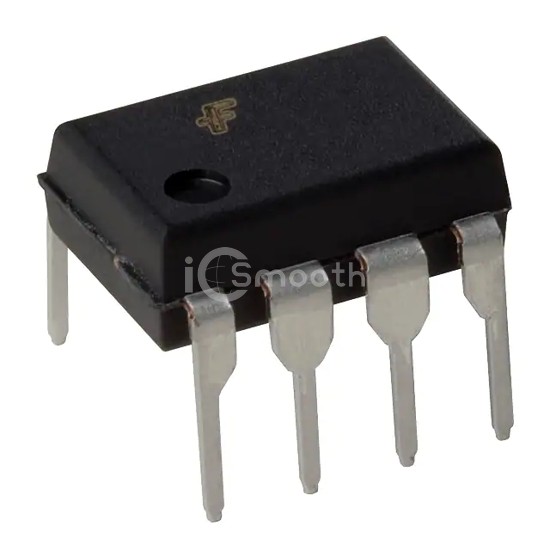

OPTOISO 5KV TRANS W/BASE 8DIP

HCPL4503M is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISO 5KV TRANS W/BASE 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.45V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 985

Tiered Pricing USD

1+ $2.3000 —

50+ $1.3704 -40%

100+ $1.2752 -45%

500+ $1.1055 -52%

1,000+ $1.0501 -54%

2,000+ $1.0033 -56%

5,000+ $0.9522 -59%

10,000+ $0.9204 -60% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	19% @ 16mA
Current Transfer Ratio (Max)	50% @ 16mA
Turn On / Turn Off Time (Typ)	250ns, 260ns
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	20V
Current - Output / Channel	8mA
Voltage - Forward (Vf) (Typ)	1.45V
Current - DC Forward (If) (Max)	25 mA
Vce Saturation (Max)	-
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-DIP
