Name: HCPL2503
Brand: onsemi
SKU: HCPL2503
Availability: InStock

REF: HCPL2503 onsemi

HCPL2503

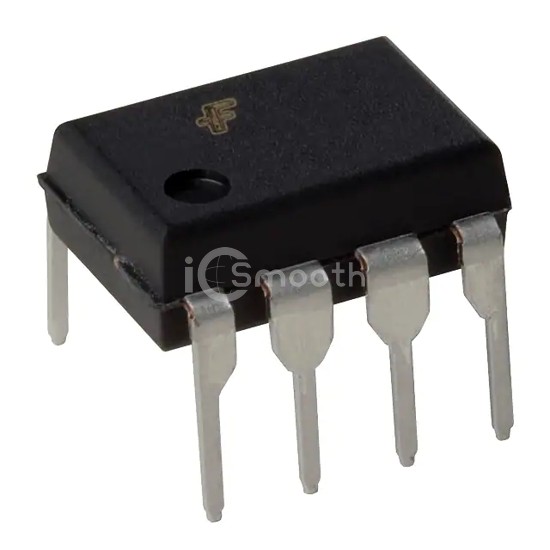

OPTOISO 2.5KV TRANS W/BASE 8DIP

HCPL2503 is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISO 2.5KV TRANS W/BASE 8DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.45V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 6,916

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	2500Vrms
Current Transfer Ratio (Min)	12% @ 16mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	450ns, 300ns
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	20V
Current - Output / Channel	8mA
Voltage - Forward (Vf) (Typ)	1.45V
Current - DC Forward (If) (Max)	25 mA
Vce Saturation (Max)	-
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-DIP
