HCPL0701

In Stock: 5,671

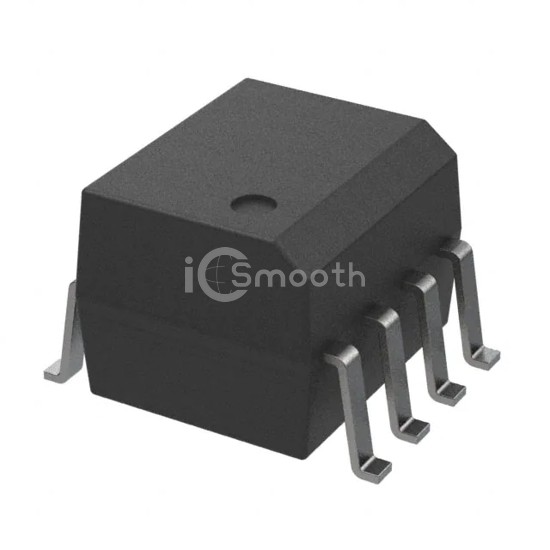

HCPL0701 - onsemi - Optoisolators - Transistor, Photovoltaic Output
REF: HCPL0701 onsemi
HCPL0701

onsemi

OPTOCOUPLER DARL OUT 1CH 8-SOIC

HCPL0701 is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOCOUPLER DARL OUT 1CH 8-SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - forward (vf) (typ) 1.25V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 5,671

Tiered Pricing USD
1+ $2.7100 —
50+ $1.6302 -40%
100+ $1.5205 -44%
500+ $1.3252 -51%
1,000+ $1.2616 -53%
2,000+ $1.2077 -55%
5,000+ $1.1491 -58% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation2500Vrms
Current Transfer Ratio (Min)500% @ 1.6mA
Current Transfer Ratio (Max)2600% @ 1.6mA
Turn On / Turn Off Time (Typ)300ns, 1.6µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeDarlington with Base
Voltage - Output (Max)18V
Current - Output / Channel60mA
Voltage - Forward (Vf) (Typ)1.25V
Current - DC Forward (If) (Max)20 mA
Vce Saturation (Max)-
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
