HCPL0700R2V

In Stock: 3,187
HCPL0700R2V - onsemi - Optoisolators - Transistor, Photovoltaic Output
REF: HCPL0700R2V onsemi
HCPL0700R2V

onsemi

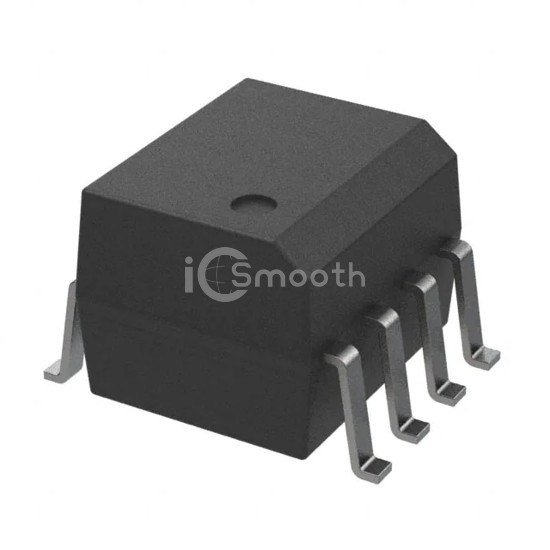

OPTOCOUPLER SGL DARL OUT 8-SOIC

HCPL0700R2V is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOCOUPLER SGL DARL OUT 8-SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - forward (vf) (typ) 1.25V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 3,187

Tiered Pricing USD
2,500+ $1.0402 —
5,000+ $1.0033 -4%
7,500+ $0.9849 -5% BEST

Specifications

18 parameters
Product StatusObsolete
Number of Channels1
Voltage - Isolation2500Vrms
Current Transfer Ratio (Min)300% @ 1.6mA
Current Transfer Ratio (Max)2600% @ 1.6mA
Turn On / Turn Off Time (Typ)1µs, 7µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeDarlington with Base
Voltage - Output (Max)7V
Current - Output / Channel60mA
Voltage - Forward (Vf) (Typ)1.25V
Current - DC Forward (If) (Max)20 mA
Vce Saturation (Max)-
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
