Name: HCPL0534R2
Brand: onsemi
SKU: HCPL0534R2
Price: 2.44 USD
Availability: InStock

REF: HCPL0534R2 onsemi

HCPL0534R2

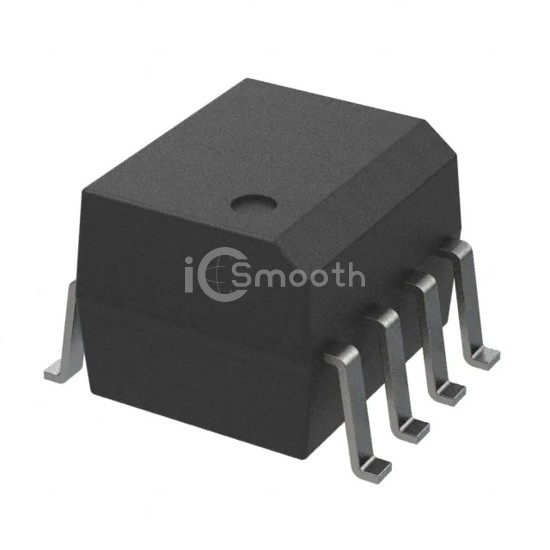

OPTOCOUPLR TRANS 2CHAN HS 8SOIC

HCPL0534R2 is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOCOUPLR TRANS 2CHAN HS 8SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - forward (vf) (typ) 1.45V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 2,500

Tiered Pricing USD

1+ $2.4400 —

10+ $1.7590 -28%

100+ $1.3549 -44%

500+ $1.1767 -52%

1,000+ $1.1187 -54% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	2
Voltage - Isolation	2500Vrms
Current Transfer Ratio (Min)	19% @ 16mA
Current Transfer Ratio (Max)	50% @ 16mA
Turn On / Turn Off Time (Typ)	450ns, 300ns
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	20V
Current - Output / Channel	8mA
Voltage - Forward (Vf) (Typ)	1.45V
Current - DC Forward (If) (Max)	25 mA
Vce Saturation (Max)	-
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
