HCPL0501

In Stock: 1,633

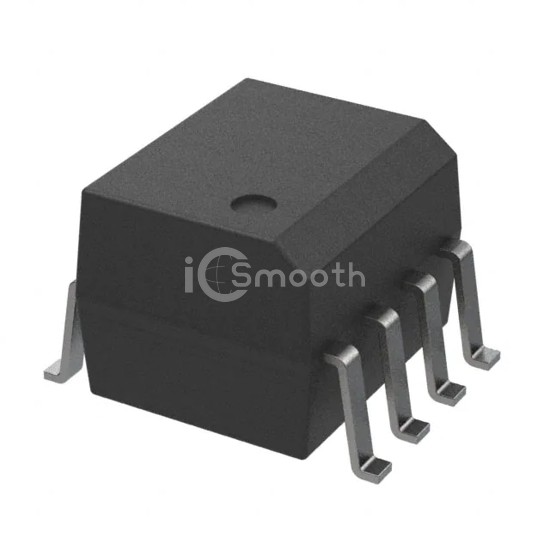

HCPL0501 - onsemi - Optoisolators - Transistor, Photovoltaic Output
REF: HCPL0501 onsemi
HCPL0501

onsemi

OPTOCOUPLER SGL TRANS OUT 8-SO

HCPL0501 is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOCOUPLER SGL TRANS OUT 8-SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - forward (vf) (typ) 1.45V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 1,633

Tiered Pricing USD
1+ $1.4000 —
10+ $0.9900 -29%
100+ $0.7429 -47%
500+ $0.6332 -55%
1,000+ $0.5974 -57%
3,000+ $0.5514 -61%
6,000+ $0.5280 -62%
12,000+ $0.5083 -64% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation2500Vrms
Current Transfer Ratio (Min)19% @ 16mA
Current Transfer Ratio (Max)50% @ 16mA
Turn On / Turn Off Time (Typ)450ns, 300ns
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor with Base
Voltage - Output (Max)20V
Current - Output / Channel8mA
Voltage - Forward (Vf) (Typ)1.45V
Current - DC Forward (If) (Max)25 mA
Vce Saturation (Max)-
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
