Name: H11G1TVM
Brand: onsemi
SKU: H11G1TVM
Price: 1.00 USD
Availability: InStock

REF: H11G1TVM onsemi

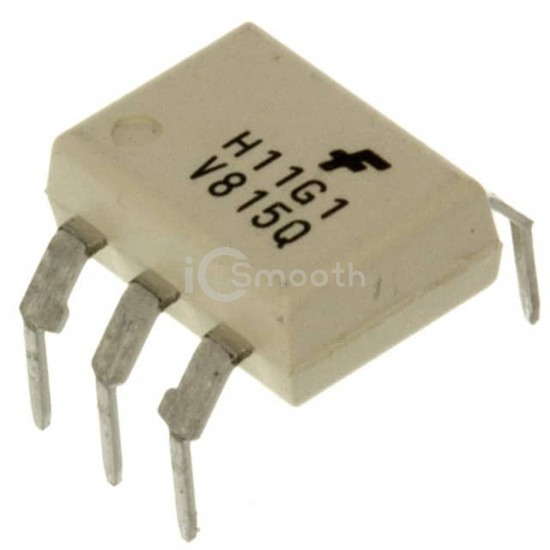

H11G1TVM

OPTOISO 4.17KV DARL W/BASE 6DIP

H11G1TVM is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISO 4.17KV DARL W/BASE 6DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.3V, package / case 6-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 4,679

Tiered Pricing USD

1+ $1.0000 —

50+ $0.5600 -44%

100+ $0.5146 -49%

500+ $0.4334 -57%

1,000+ $0.4069 -59%

2,000+ $0.3843 -62%

5,000+ $0.3597 -64%

10,000+ $0.3444 -66%

25,000+ $0.3277 -67% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	4170Vrms
Current Transfer Ratio (Min)	1000% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	5µs, 100µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Darlington with Base

Voltage - Output (Max)	100V
Current - Output / Channel	-
Voltage - Forward (Vf) (Typ)	1.3V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	1V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.400", 10.16mm)
Supplier Device Package	6-DIP
