H11D1SR2M

In Stock: 7,674
H11D1SR2M - onsemi - Optoisolators - Transistor, Photovoltaic Output
REF: H11D1SR2M onsemi
H11D1SR2M

onsemi

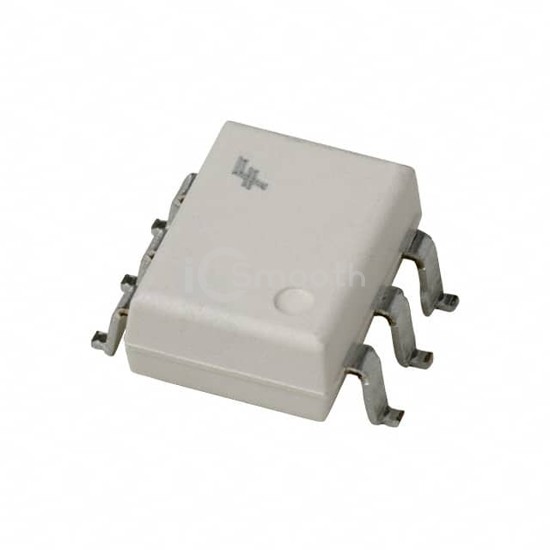

OPTOISO 4.17KV TRANS W/BASE 6SMD

H11D1SR2M is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISO 4.17KV TRANS W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 7,674

Tiered Pricing USD
1+ $1.1400 —
10+ $0.8020 -30%
100+ $0.5960 -48%
500+ $0.5045 -56% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation4170Vrms
Current Transfer Ratio (Min)20% @ 10mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)5µs, 5µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor with Base
Voltage - Output (Max)300V
Current - Output / Channel100mA
Voltage - Forward (Vf) (Typ)1.15V
Current - DC Forward (If) (Max)80 mA
Vce Saturation (Max)400mV
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SMD, Gull Wing
Supplier Device Package6-SMD
