H11B815

In Stock: 8,018

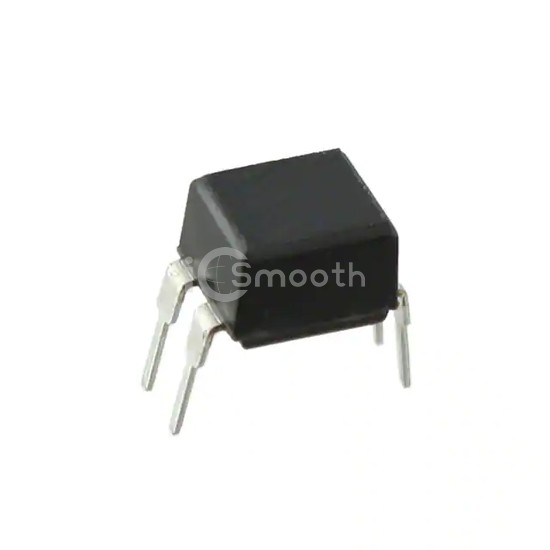

H11B815 - onsemi - Optoisolators - Transistor, Photovoltaic Output
REF: H11B815 onsemi
H11B815

onsemi

OPTOISOLATOR 5KV DARLINGTON 4DIP

H11B815 is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISOLATOR 5KV DARLINGTON 4DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 8,018

Specifications

18 parameters
Product StatusObsolete
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)600% @ 1mA
Current Transfer Ratio (Max)7500% @ 1mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)300µs, 250µs (Max)
Input TypeDC
Output TypeDarlington
Voltage - Output (Max)35V
Current - Output / Channel80mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)1V
Operating Temperature-55°C ~ 100°C
Mounting TypeThrough Hole
Package / Case4-DIP (0.300", 7.62mm)
Supplier Device Package4-DIP
