H11AG1M

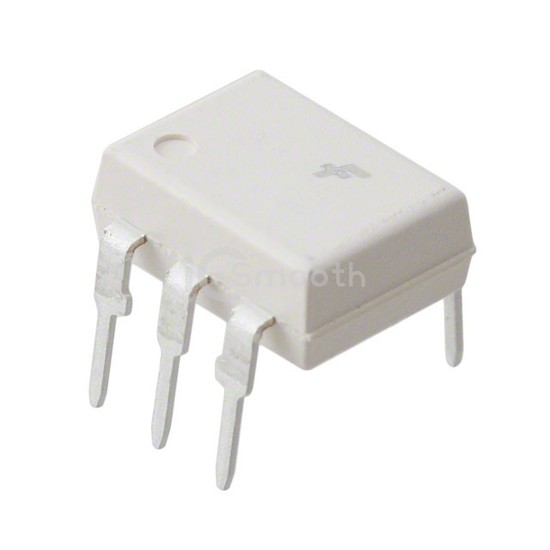

OPTOISO 4.17KV TRANS W/BASE 6DIP

H11AG1M is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISO 4.17KV TRANS W/BASE 6DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.25V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 428

Tiered Pricing USD

1+ $1.5800 —

50+ $0.9172 -42%

100+ $0.8488 -46%

500+ $0.7265 -54%

1,000+ $0.6866 -57%

2,000+ $0.6527 -59%

5,000+ $0.6158 -61%

10,000+ $0.5928 -62% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	4170Vrms
Current Transfer Ratio (Min)	100% @ 1mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	5µs, 5µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	30V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	400mV
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
