Name: H11A817A3S
Brand: onsemi
SKU: H11A817A3S
Availability: InStock

REF: H11A817A3S onsemi

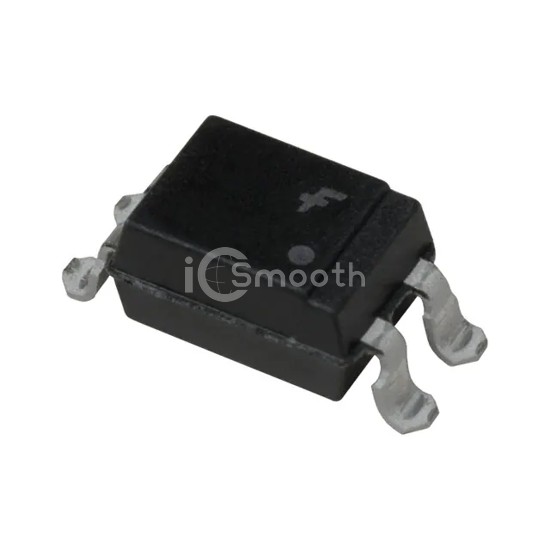

H11A817A3S

OPTOISO 5.3KV TRANSISTOR 4SMD

H11A817A3S is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISO 5.3KV TRANSISTOR 4SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 4,591

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	80% @ 5mA
Current Transfer Ratio (Max)	160% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	2.4µs, 2.4µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
