Name: FQPF9N50CYDTU
Brand: onsemi
SKU: FQPF9N50CYDTU
Availability: InStock

REF: FQPF9N50CYDTU onsemi

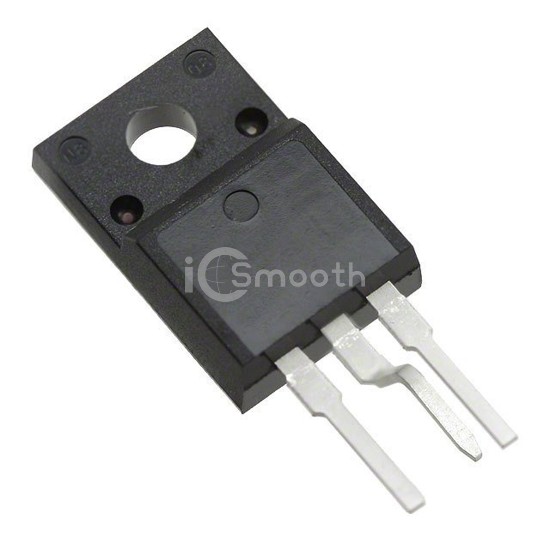

FQPF9N50CYDTU

MOSFET N-CH 500V 9A TO220F-3

FQPF9N50CYDTU is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 500V 9A TO220F-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, Formed Leads.

Datasheet Request a Quote

In Stock: 8,221

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500 V
Current - Continuous Drain (Id) @ 25°C	9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	800mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	35 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1030 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	44W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220F-3 (Y-Forming)
Package / Case	TO-220-3 Full Pack, Formed Leads
