Name: FQPF19N20CYDTU
Brand: onsemi
SKU: FQPF19N20CYDTU
Availability: InStock

REF: FQPF19N20CYDTU onsemi

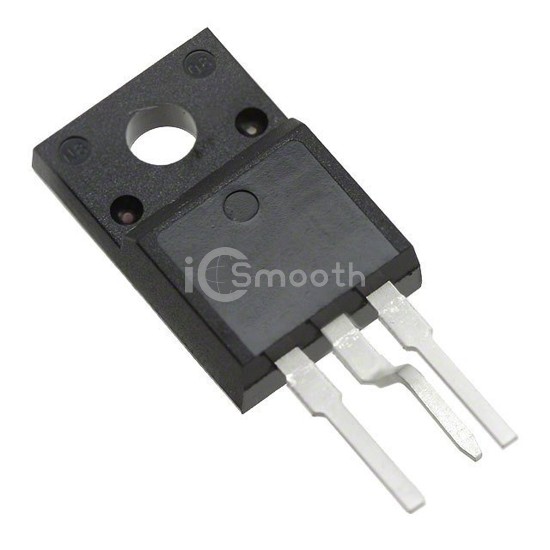

FQPF19N20CYDTU

MOSFET N-CH 200V 19A TO220F-3

FQPF19N20CYDTU is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 200V 19A TO220F-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, Formed Leads.

Request a Quote

In Stock: 8,675

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	19A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	170mOhm @ 9.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	53 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1080 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	43W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220F-3 (Y-Forming)
Package / Case	TO-220-3 Full Pack, Formed Leads
