Name: FQP13N50C_F105
Brand: onsemi
SKU: FQP13N50C_F105
Availability: InStock

REF: FQP13N50C_F105 onsemi

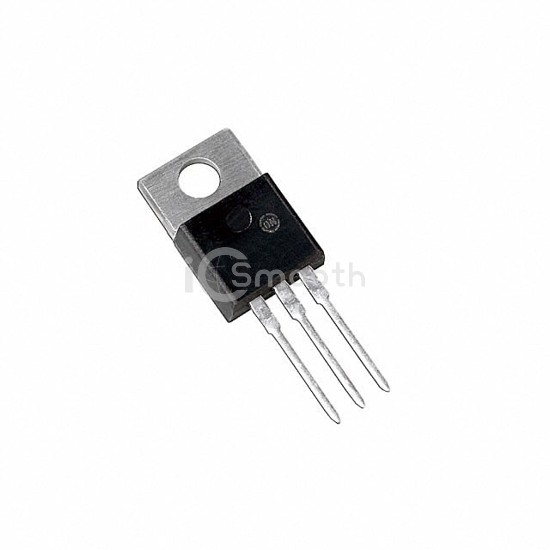

FQP13N50C_F105

MOSFET N-CH 500V 13A TO220-3

FQP13N50C_F105 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 500V 13A TO220-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 4,172

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500 V
Current - Continuous Drain (Id) @ 25°C	13A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	480mOhm @ 6.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	56 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	2055 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	195W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-3
Package / Case	TO-220-3
