Name: FQNL2N50BTA
Brand: onsemi
SKU: FQNL2N50BTA
Price: 0.63 USD
Availability: InStock

REF: FQNL2N50BTA onsemi

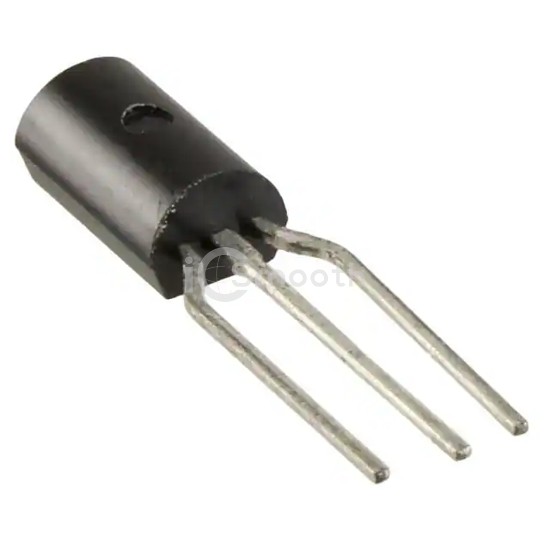

FQNL2N50BTA

MOSFET N-CH 500V 350MA TO92-3

FQNL2N50BTA is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 500V 350MA TO92-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-226-3, TO-92-3 Long Body (Formed Leads).

Datasheet Request a Quote

In Stock: 3,564

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500 V
Current - Continuous Drain (Id) @ 25°C	350mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	5.3Ohm @ 175mA, 10V
Vgs(th) (Max) @ Id	3.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	230 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	1.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-92-3
Package / Case	TO-226-3, TO-92-3 Long Body (Formed Leads)
