Name: FQD10N20LTM
Brand: onsemi
SKU: FQD10N20LTM
Price: 1.22 USD
Availability: InStock

REF: FQD10N20LTM onsemi

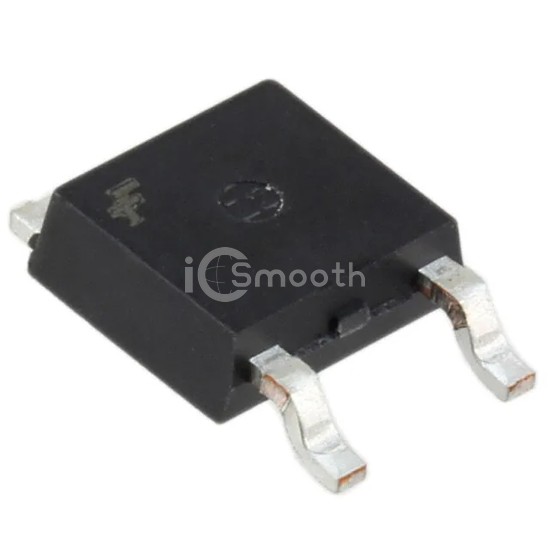

FQD10N20LTM

MOSFET N-CH 200V 7.6A TO252

FQD10N20LTM is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 200V 7.6A TO252. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 2,410

Specifications

17 parameters

Product Status	Last Time Buy
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	7.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	360mOhm @ 3.8A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	17 nC @ 5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	830 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 51W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D-Pak
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
