Name: FODM2701
Brand: onsemi
SKU: FODM2701
Price: 0.60 USD
Availability: InStock

REF: FODM2701 onsemi

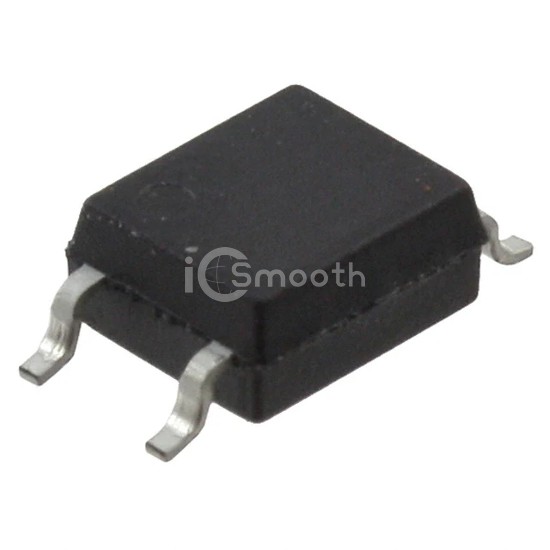

FODM2701

OPTOISO 3.75KV TRANSISTOR 4SMD

FODM2701 is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISO 3.75KV TRANSISTOR 4SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 110°C, voltage - forward (vf) (typ) 1.4V (Max), package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 2,317

Tiered Pricing USD

1+ $0.6000 —

10+ $0.4140 -31%

100+ $0.2989 -50%

500+ $0.2474 -59%

1,000+ $0.2305 -62%

2,000+ $0.2161 -64%

5,000+ $0.2004 -67%

10,000+ $0.1906 -68%

25,000+ $0.1799 -70% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	300% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	3µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	40V
Current - Output / Channel	80mA
Voltage - Forward (Vf) (Typ)	1.4V (Max)
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	300mV
Operating Temperature	-40°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
